Ever found yourself staring at a concrete surface that needs smoothing, levelling, or preparing, and wondered where to start? Perhaps you've asked yourself which grinding cups are right for your project, or whether your angle grinder for cutting concrete is actually up to the job? You're definitely not alone.

Concrete grinding can seem overwhelming at first glance. There's a whole world of grinding cup wheels, concrete grinder blades, and specialised discs out there. Each serves a specific purpose, and picking the wrong one can mean wasted time, money, and effort. What's more, using the incorrect equipment can even damage your surfaces or create safety hazards.

In this guide, we'll walk you through everything you need to know about concrete grinding disc. From understanding the different types of grinding cups to choosing the perfect cup grinder for your needs, we've got you covered. We'll explore when to use a concrete diamond grinder, how to safely operate your equipment, and share tips to extend the life of your tools. Whether you're a DIY enthusiast tackling a home renovation or a tradie working on commercial projects, this resource will help you make informed decisions and achieve professional results.

Types of Grinding Cups and Discs Explained

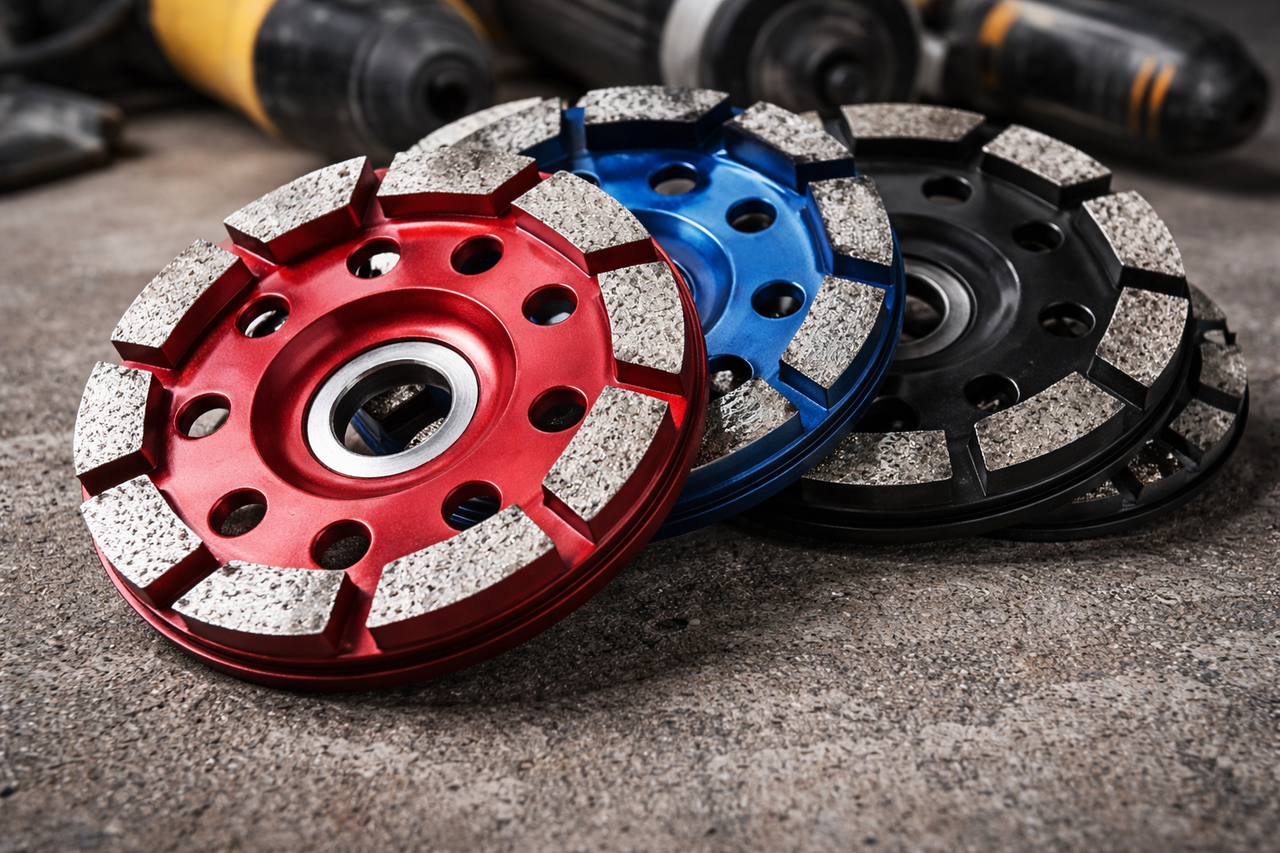

Single Row vs Double Row Grinding Cups

When it comes to grinding cups, you'll quickly notice two main configurations: single row and double row. Single row cups feature one ring of diamond segments, making them incredibly aggressive. They're brilliant for fast material removal and work particularly well on harder concrete surfaces.

Double row grinding cups, on the other hand, have two rings of segments. This design provides a smoother finish and better stability during operation. They're ideal for general-purpose grinding and surface preparation where you need a balance between speed and finish quality.

The choice between them often comes down to your specific project. Need to remove thick coatings or level uneven surfaces quickly? Go single row. After a smoother, more controlled grind? Double row is your mate.

Turbo Grinding Cup Wheels

Turbo grinding cup wheels feature a continuous rim with serrated segments. This design allows for faster grinding while maintaining a reasonably smooth finish. They're versatile workhorses that handle both wet and dry grinding applications.

These wheels excel at removing thin coatings, smoothing rough surfaces, and preparing concrete for overlays. The turbo design also helps with cooling during operation, which extends the disc's lifespan.

Concrete Sanding Discs and Diamond Grinder Discs

A concrete sanding disc is your go-to for finishing work. Once you've done the heavy grinding, these discs help achieve that smooth, polished look. They're available in multiple grits, allowing you to progressively refine your surface.

Concrete diamond grinder discs are the professional's choice for serious work. The industrial-grade diamonds embedded in these discs provide unmatched cutting and grinding power. They last significantly longer than standard abrasive discs and deliver consistent performance throughout their lifespan.

Understanding Concrete Grinder Blades

What Is a Concrete Grinder Blade Used For?

A concrete grinder blade is designed specifically for cutting through concrete, masonry, and similar materials. Unlike grinding cups that work on flat surfaces, these blades cut into the material. They're essential for creating expansion joints, cutting channels for cables, or removing sections of concrete entirely.

How Do Concrete Grinder Blades Differ from Grinding Cups?

The key difference lies in their application. A grinding cup works parallel to the surface, removing material from the top layer. A concrete grinder blade cuts perpendicular to the surface, slicing through the material.

Think of it this way: grinding cups smooth and level, while blades cut and slice. Both are essential tools, but they serve distinctly different purposes in concrete work.

Diamond vs Non-Diamond Blades

Diamond blades contain synthetic diamond particles bonded to the cutting edge. They're incredibly durable and maintain their cutting ability far longer than alternatives. Yes, they cost more upfront, but the longevity and performance make them worthwhile investments.

Non-diamond blades, typically made from abrasive materials, are cheaper initially. However, they wear out quickly and may not handle tough jobs effectively. For anything beyond light-duty work, diamond is the way to go.

Choosing the Right Cup Grinder for Your Project

What Size Grinding Cup Wheel Do I Need?

Grinding cup wheels typically range from 100mm to 180mm in diameter. Smaller wheels offer more control and are perfect for detailed work or tight spaces. Larger wheels cover more area faster, making them suitable for big surface preparation jobs.

Match your wheel size to your concrete grinder's specifications. Using an incorrectly sized wheel isn't just ineffective—it's dangerous.

Matching Your Grinding Cup to Your Concrete Grinder

Not all grinding cups fit all grinders. Check your grinder's arbor size and maximum disc diameter before purchasing. Most angle grinders in Australia use standard arbor sizes, but it's always worth double-checking.

Also consider your grinder's power output. A heavy-duty grinding cup paired with an underpowered machine will result in poor performance and potential damage to both tool and disc.

Bond Hardness: Soft, Medium, and Hard Explained

Bond hardness refers to how easily the diamond segments wear away to expose fresh cutting surfaces. Soft bonds wear quickly and suit hard concrete. Hard bonds wear slowly and work best on softer concrete.

It might seem counterintuitive, but matching bond hardness inversely to your concrete hardness ensures optimal performance. Medium bonds offer versatility for mixed applications.

Using an Angle Grinder for Cutting Concrete

Can You Use an Angle Grinder to Cut Concrete?

Absolutely! An angle grinder for cutting concrete is a versatile and powerful option. Fitted with the appropriate diamond blade, your angle grinder can slice through concrete for small to medium jobs effectively.

However, angle grinders have limitations. For deep cuts or extensive work, dedicated concrete saws might be more appropriate. Angle grinders excel at shallow cuts, scoring lines, and detail work.

Safety Considerations

Concrete grinding generates significant dust containing crystalline silica, which poses serious health risks. Always use proper dust extraction or wet grinding methods. Quality respiratory protection is non-negotiable.

Wear safety glasses, hearing protection, and sturdy gloves. Secure your workpiece properly and never remove blade guards from your equipment. Take regular breaks to prevent fatigue-related accidents.

Best Practices for Cutting and Grinding

Let the tool do the work—don't force it. Apply steady, even pressure and allow the disc to cut at its own pace. Forcing the tool causes premature wear and increases accident risk.

Keep your disc clean and check for damage before each use. Work in well-ventilated areas whenever possible, and always have a first aid kit nearby.

Concrete Diamond Grinder: Features and Benefits

What Makes a Concrete Diamond Grinder Worth the Investment?

A dedicated concrete diamond grinder offers superior power, dust collection systems, and ergonomic designs tailored specifically for concrete work. Unlike adaptable tools, these machines are purpose-built for the job.

The investment pays off through faster work completion, better results, and reduced fatigue. For professionals or serious DIYers tackling regular concrete projects, they're invaluable.

Applications for Diamond Grinding

Diamond grinding suits everything from preparing garage floors for epoxy coatings to polishing commercial showroom concrete. It removes adhesives, levels uneven slabs, and creates smooth surfaces ready for finishing.

Both residential renovators and commercial contractors benefit from diamond grinding technology. The versatility and quality of finish achievable make it the preferred method for demanding applications.

Common Mistakes to Avoid When Using Grinding Cup Wheels

Incorrect speed settings cause problems. Running too fast generates excessive heat and accelerates wear. Too slow, and you won't achieve proper cutting action. Always check manufacturer recommendations.

Using the wrong grit creates frustration. Coarse grits for heavy removal, fine grits for finishing—mixing this up wastes time and compromises results.

Never neglect dust extraction and safety gear. It's tempting to skip these for quick jobs, but the health consequences aren't worth the shortcut.

Maintenance and Longevity Tips

Store your discs flat and dry to prevent warping. Clean them after each use to remove concrete buildup that affects performance.

Replace your grinding cup when segments become visibly worn or performance noticeably decreases. Pushing worn discs risks damaging your surfaces and equipment.

Conclusion

Choosing the right concrete grinding disc doesn't need to be complicated. By understanding the differences between grinding cups, concrete grinder blades, and specialised discs, you're already ahead of the game.

Remember to match your equipment to your specific project requirements. Consider the concrete hardness, the finish you need, and the scale of work involved. Invest in quality diamond options where possible—they genuinely pay for themselves over time.

Most importantly, prioritise safety in everything you do. Proper dust control, appropriate protective equipment, and correct operating procedures protect your health and ensure great results. Now you've got the knowledge—time to get grinding!
